Product Detail

The production time for this model is 2-3 weeks and the transit time is 1 week. On average, it takes about a month to get it delivered to you.

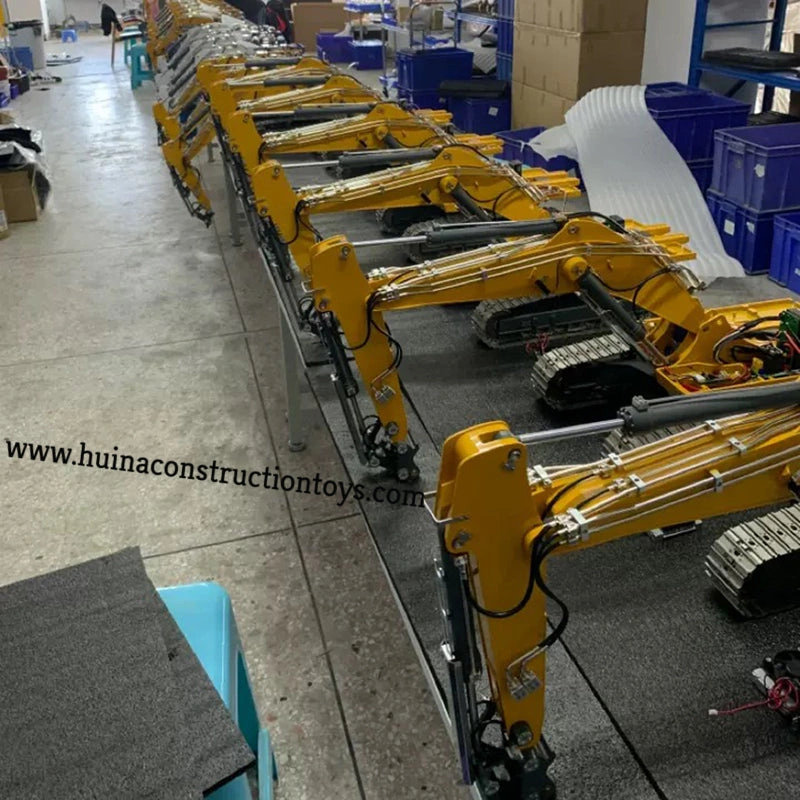

This machine is tested and inspected before it is shipped to avoid any problems. It is shipped directly from Huina(Kabolite)factory

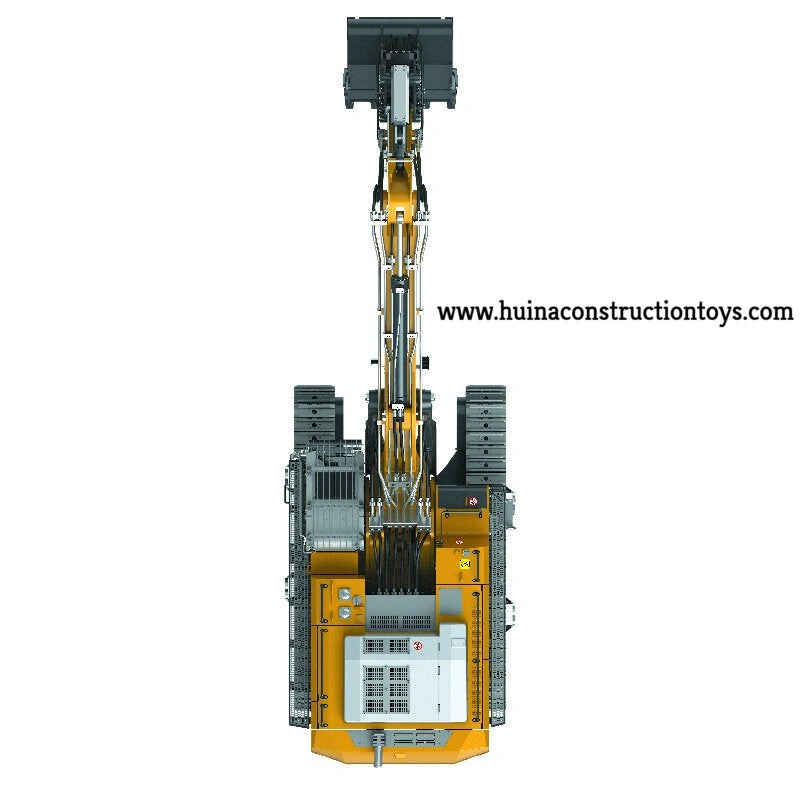

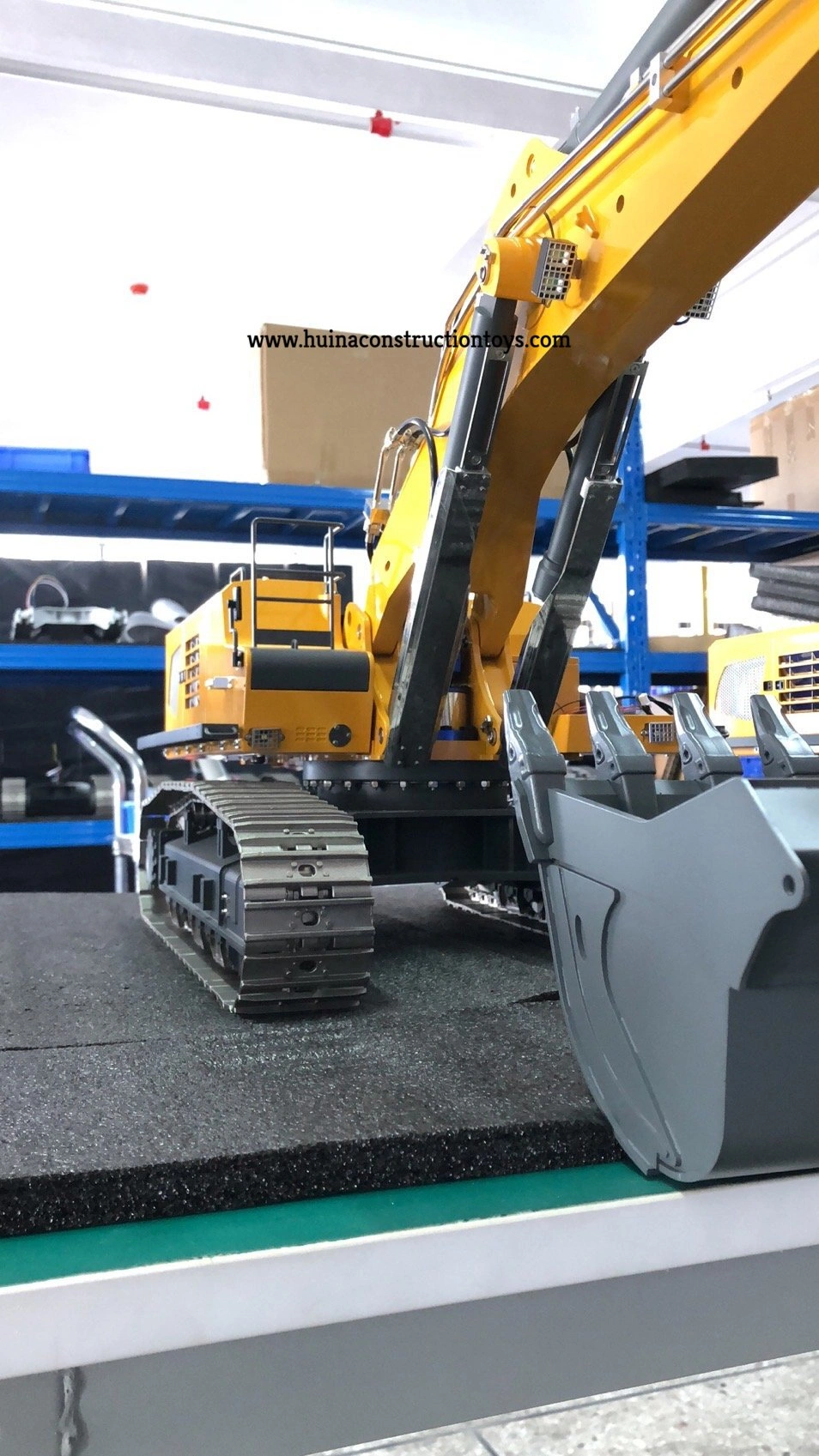

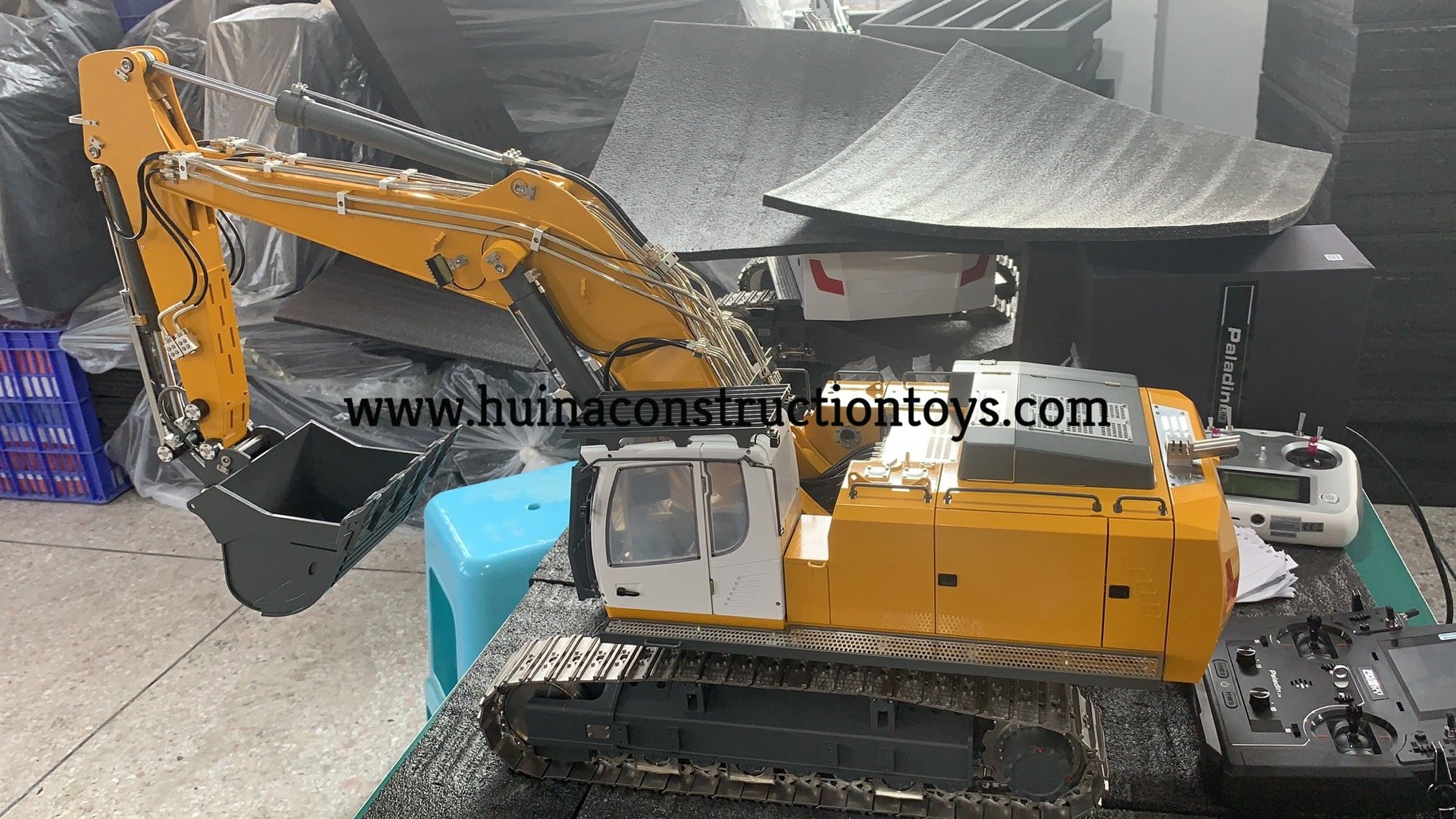

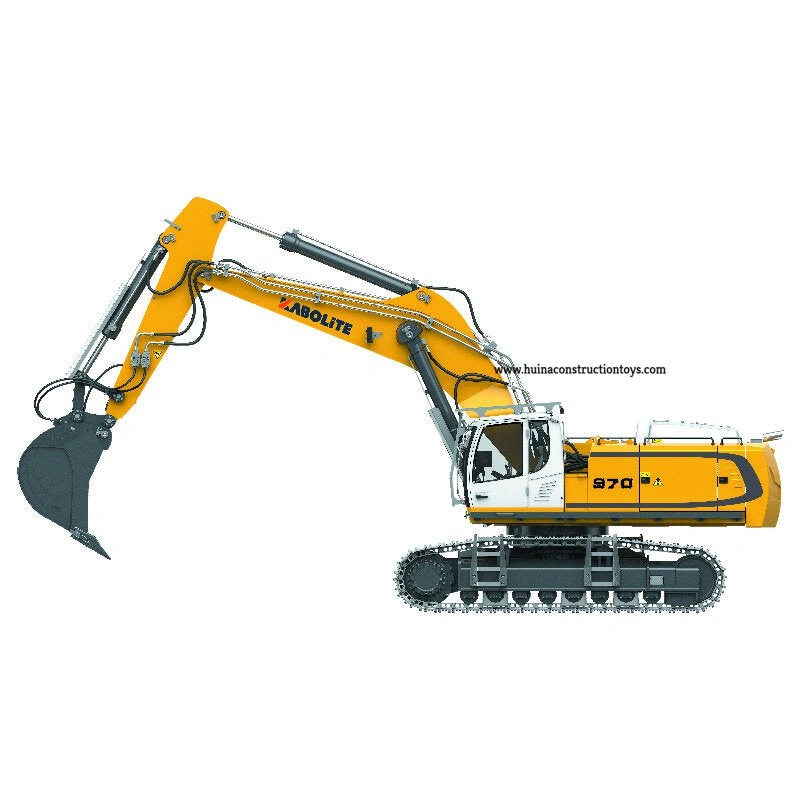

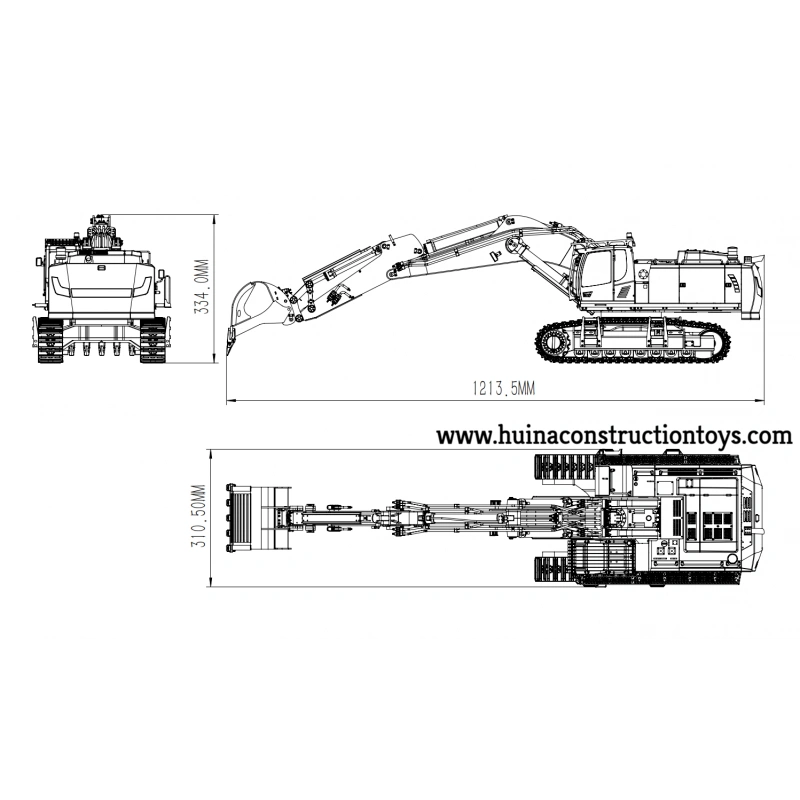

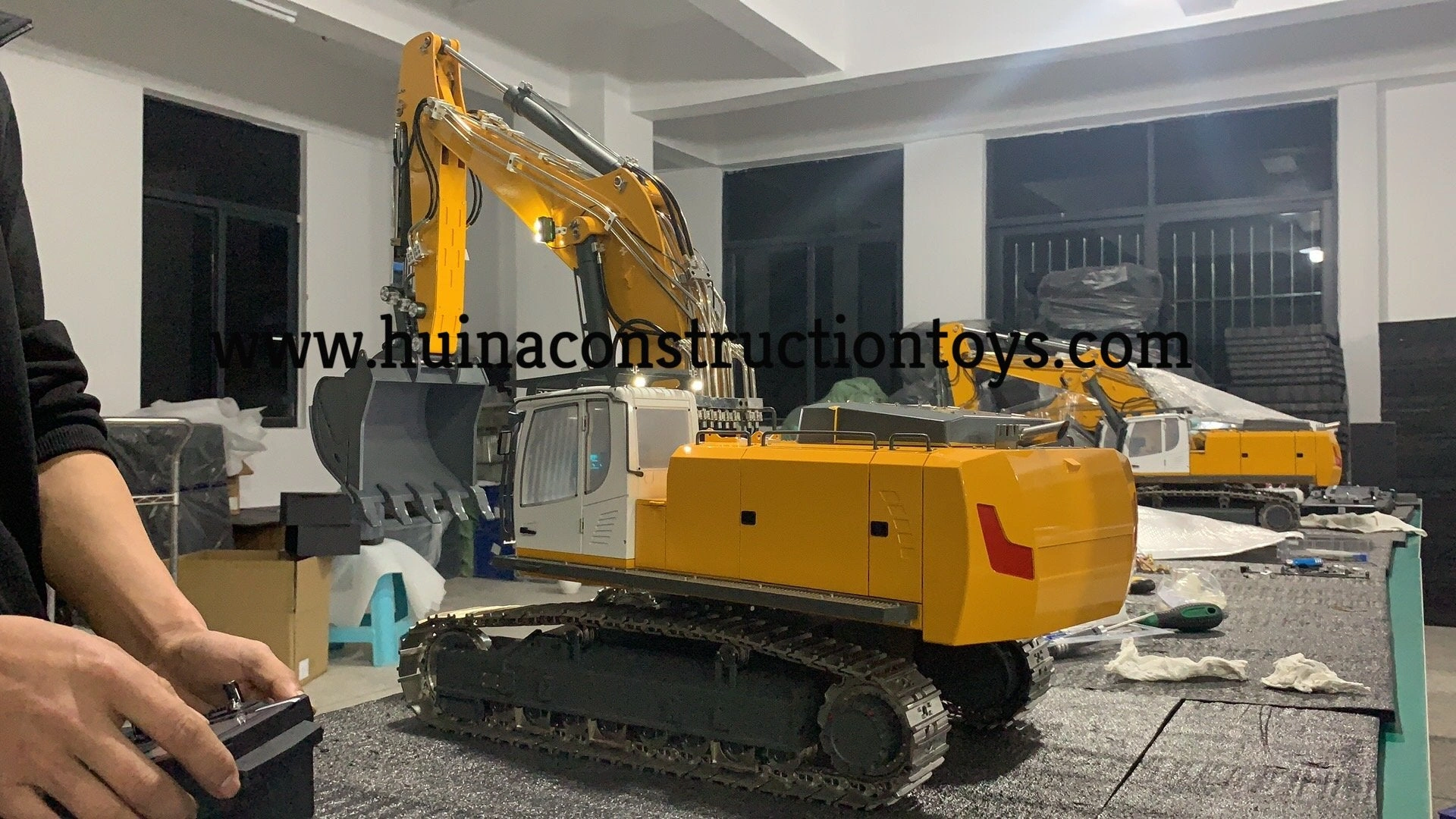

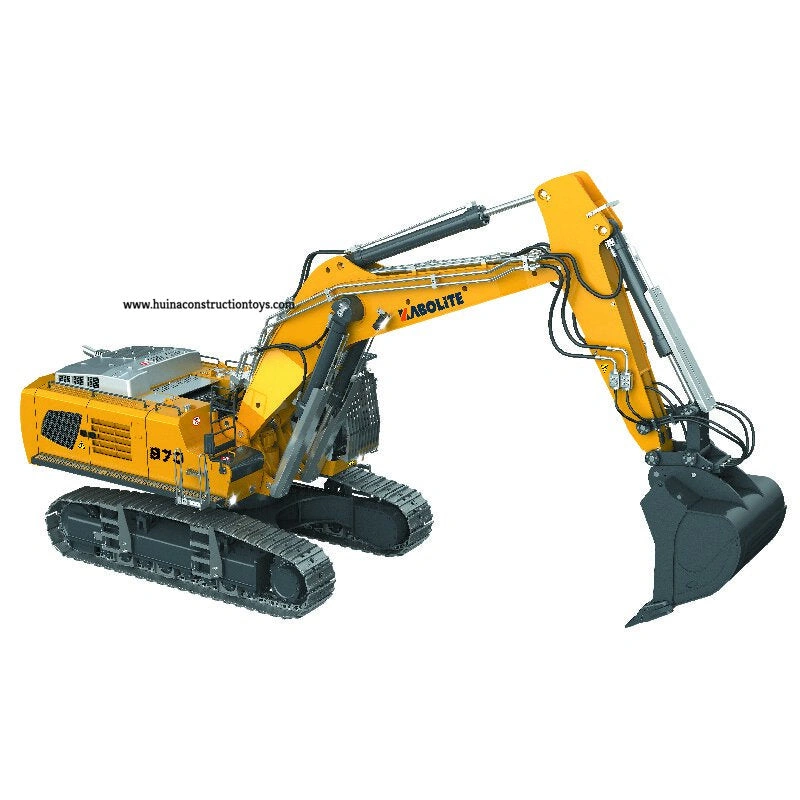

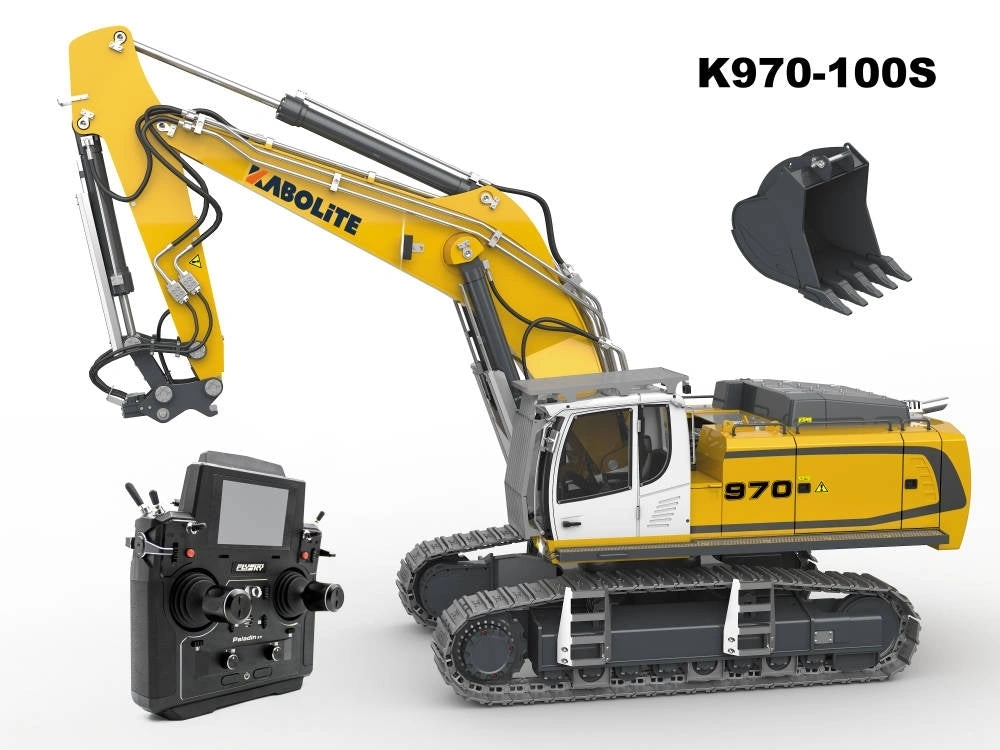

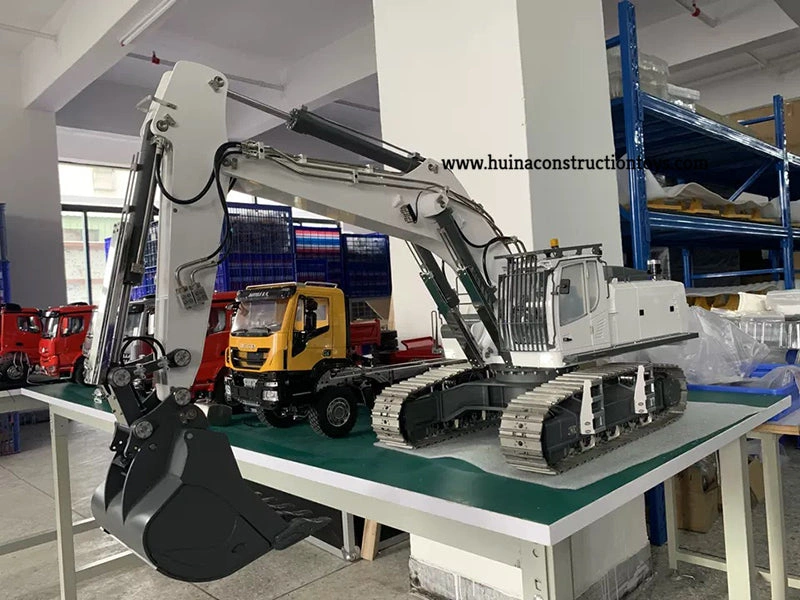

The 970 is the best hydraulic excavator produced by the huina factory, on a scale of 1:14, made entirely of metal and weighs 31 kilograms, which guarantees robustness, stability in movement and power which are essential to guarantee high performance and operational efficiency in an excavator model of this class.

The movement of Kabolite 970 is guaranteed by powerful brushless motors that drive the tracks through 4-level planetary reducers, capable of providing a thrust of 80 kg and the 360 ​​° cab rotation system, also adopts a brushless motor with reduction gear 4-level planetary, capable of providing a thrust of 65 kg.

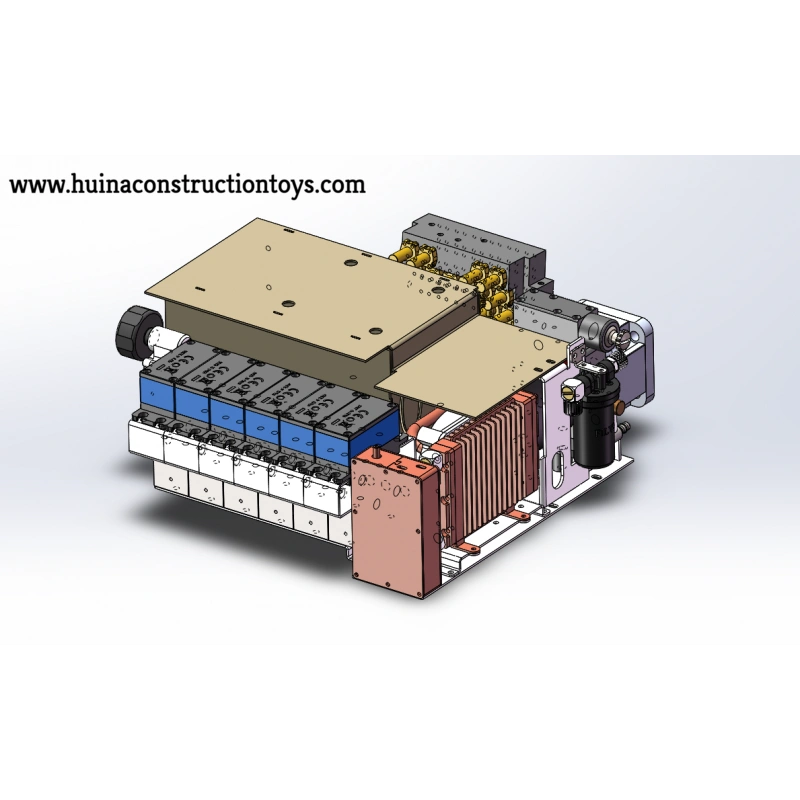

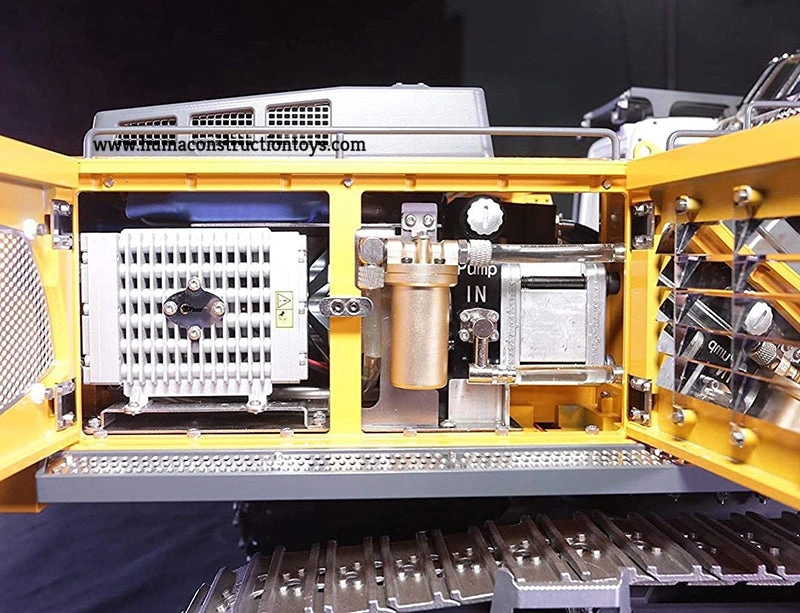

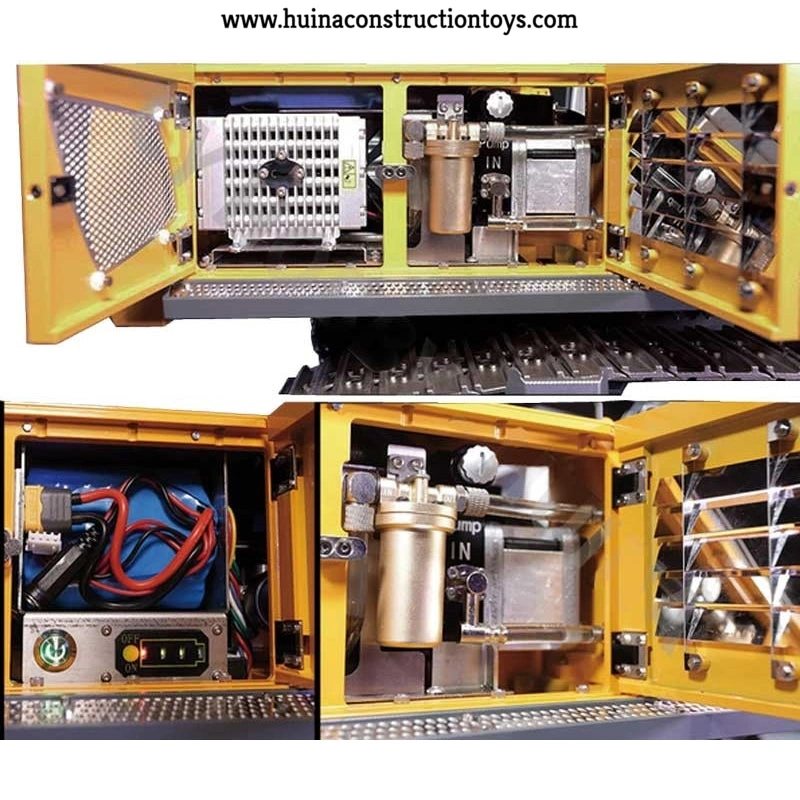

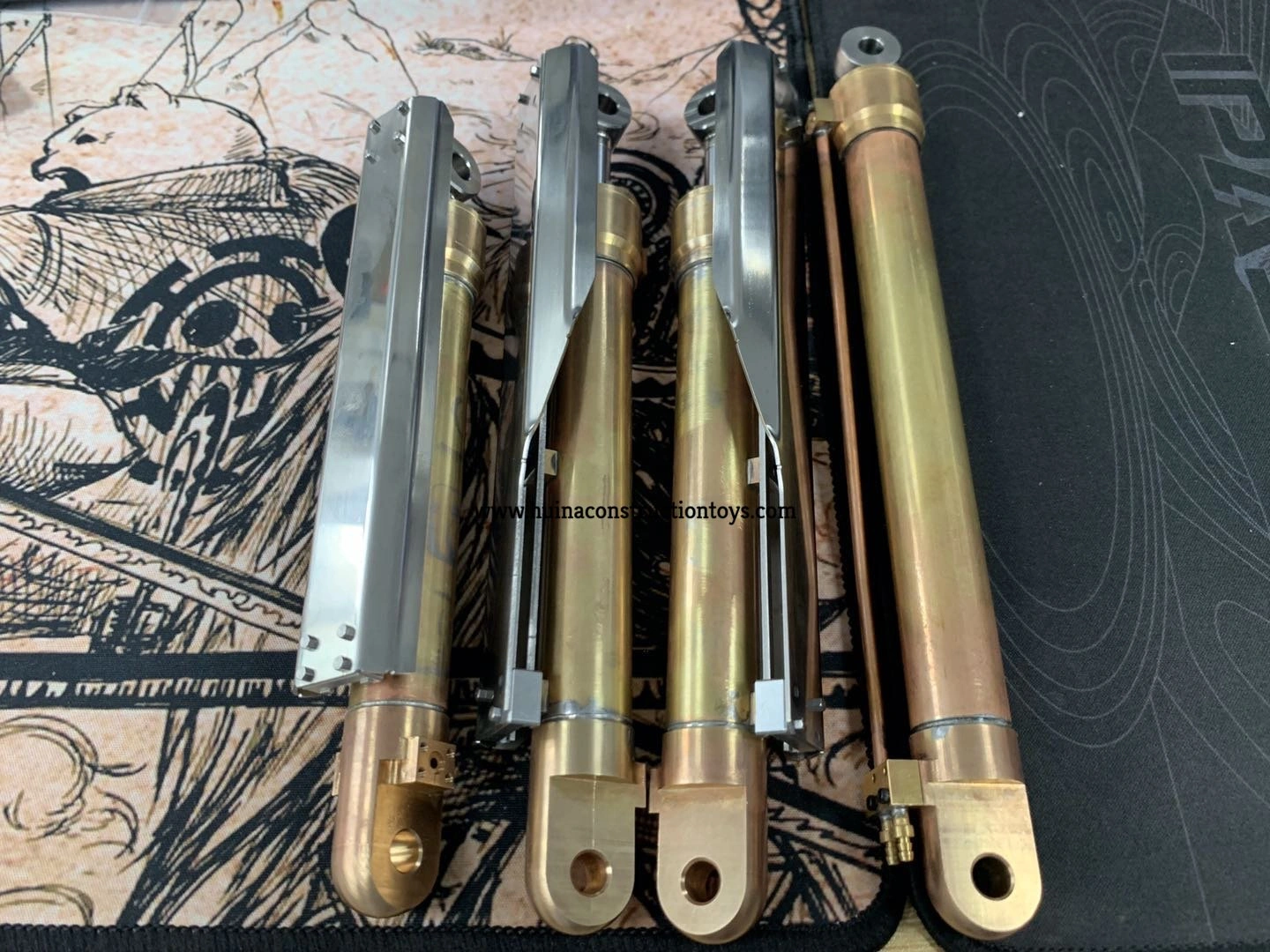

The movements of the arm are provided by a hydraulic piston circuit. The main pump uses a high power static brushless motor. Six-way valves control the main boom, front boom, bucket and quick-change bucket system. There is a pressure gauge, hidden behind a door, to check the correct functioning of the system.

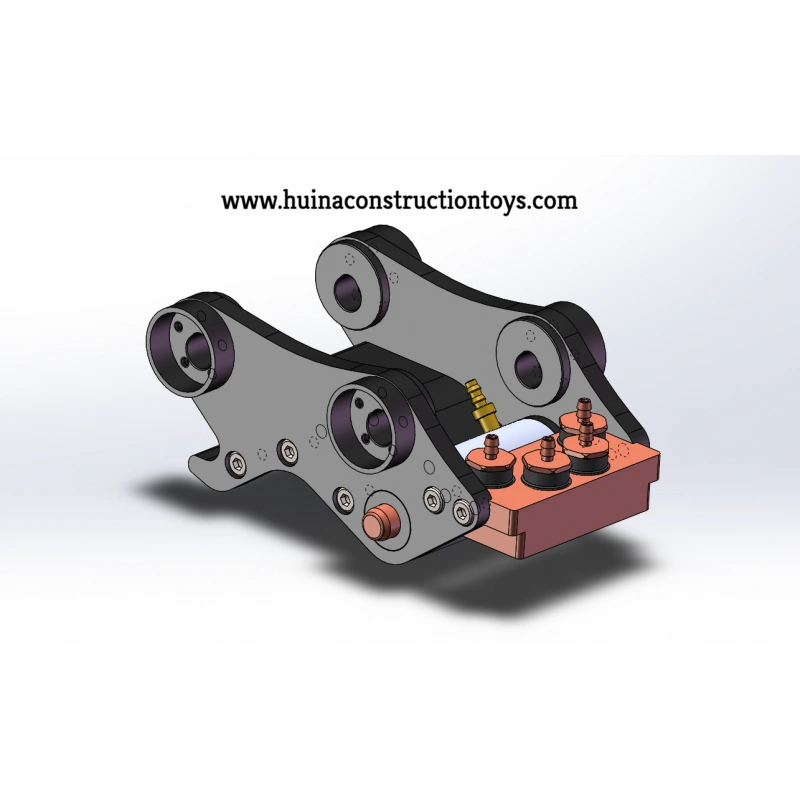

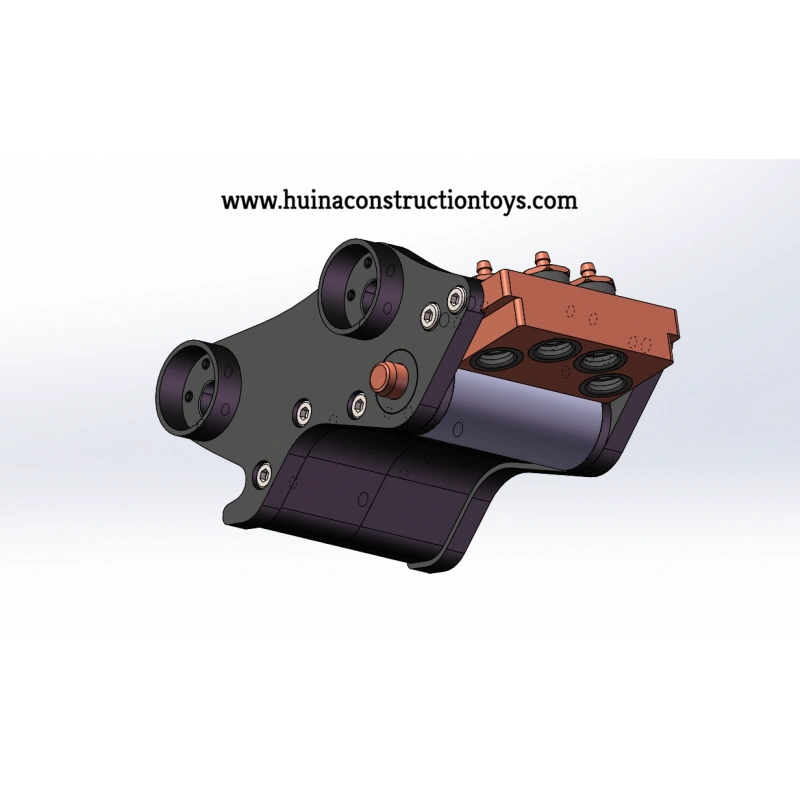

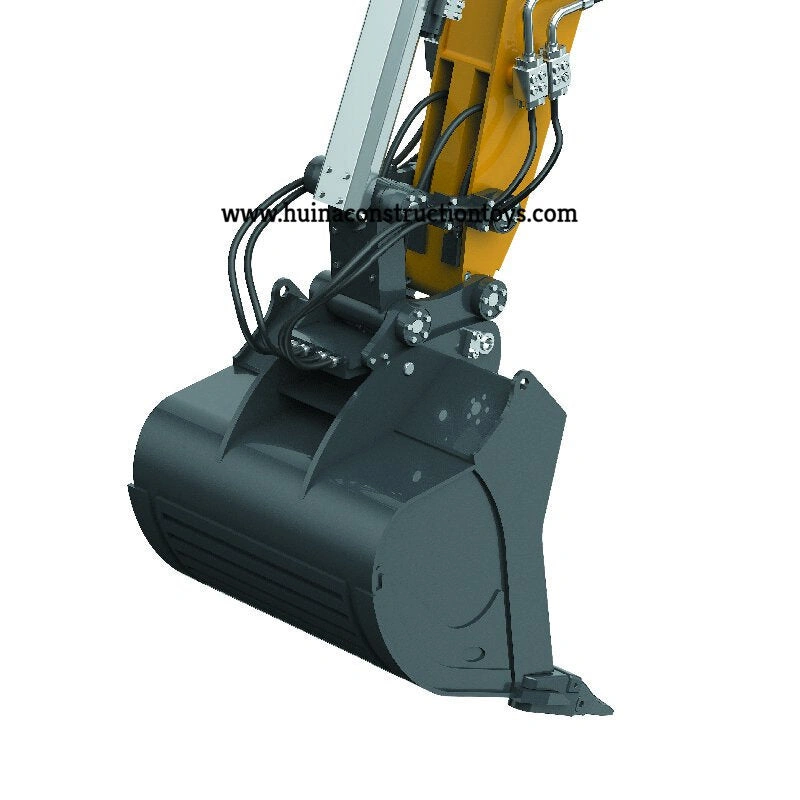

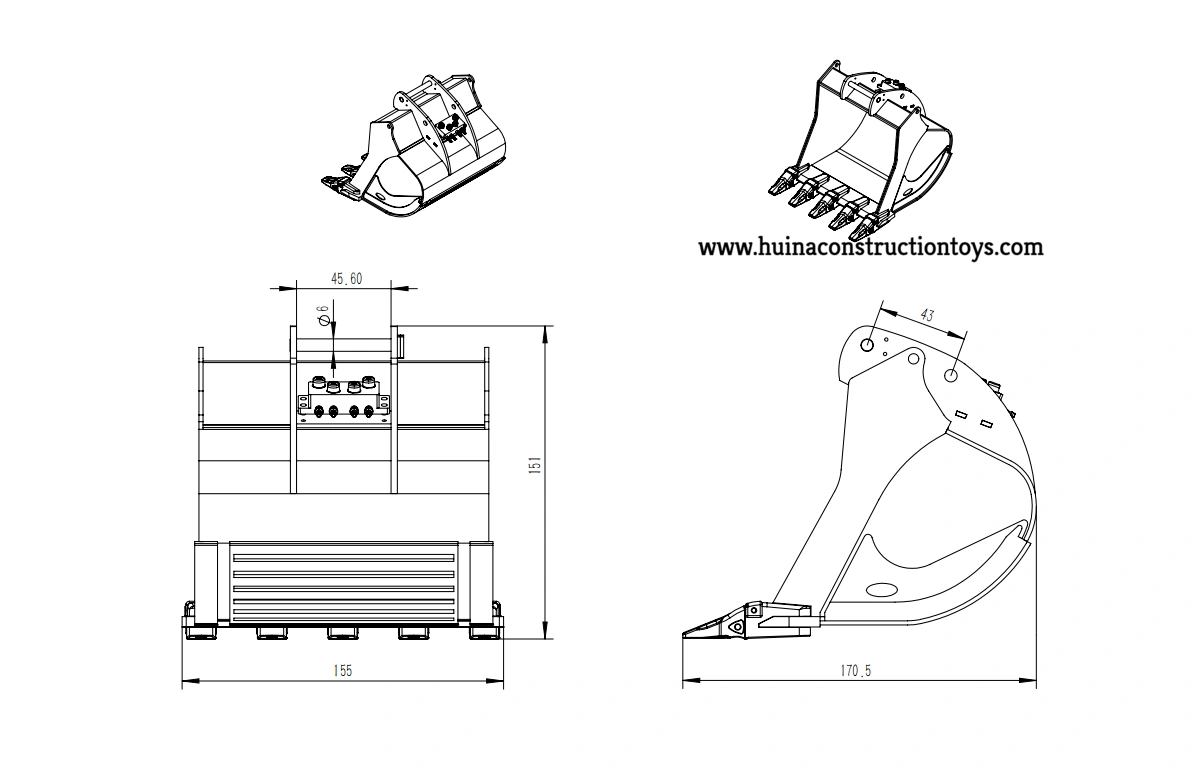

The tool (bucket) is connected and disconnected from the front arm through an automated hydraulic system.

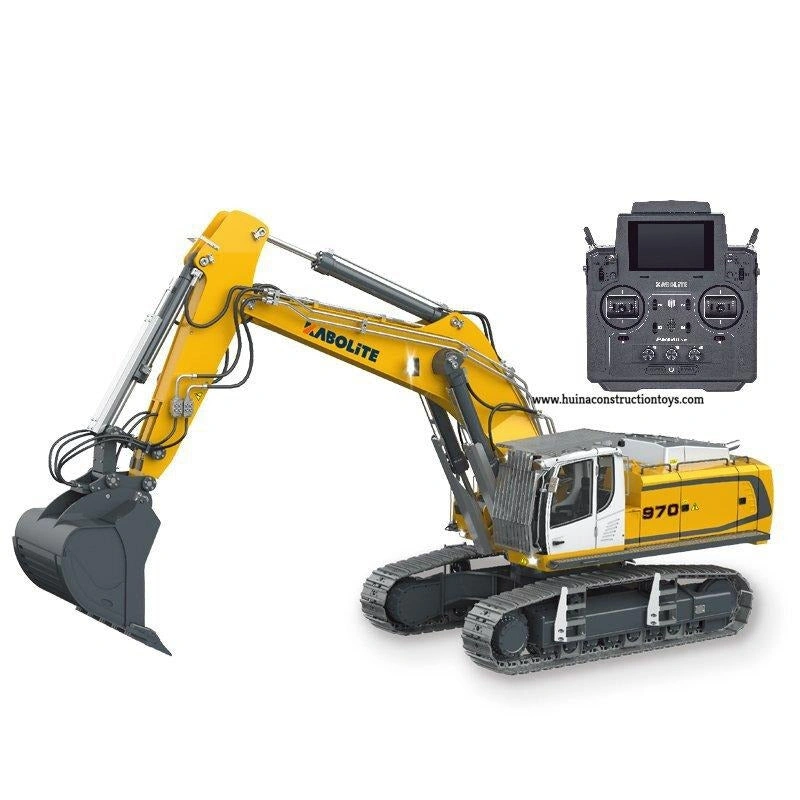

Everything is easily controlled by an 18-channel 2.4GHz remote control, equipped with a large colour touch screen, and an end-user system capable of providing us with the necessary information and guiding us in an easy and intuitive way in programming. The operating mode of the K970 is switchable between DRIVE and DIG.

The model is made using the best materials and the best construction technologies; aluminium alloy parts, laser welding on stainless steel, CNC technology, nylon pistons and tubes of the high-performance hydraulic system, precision gears.

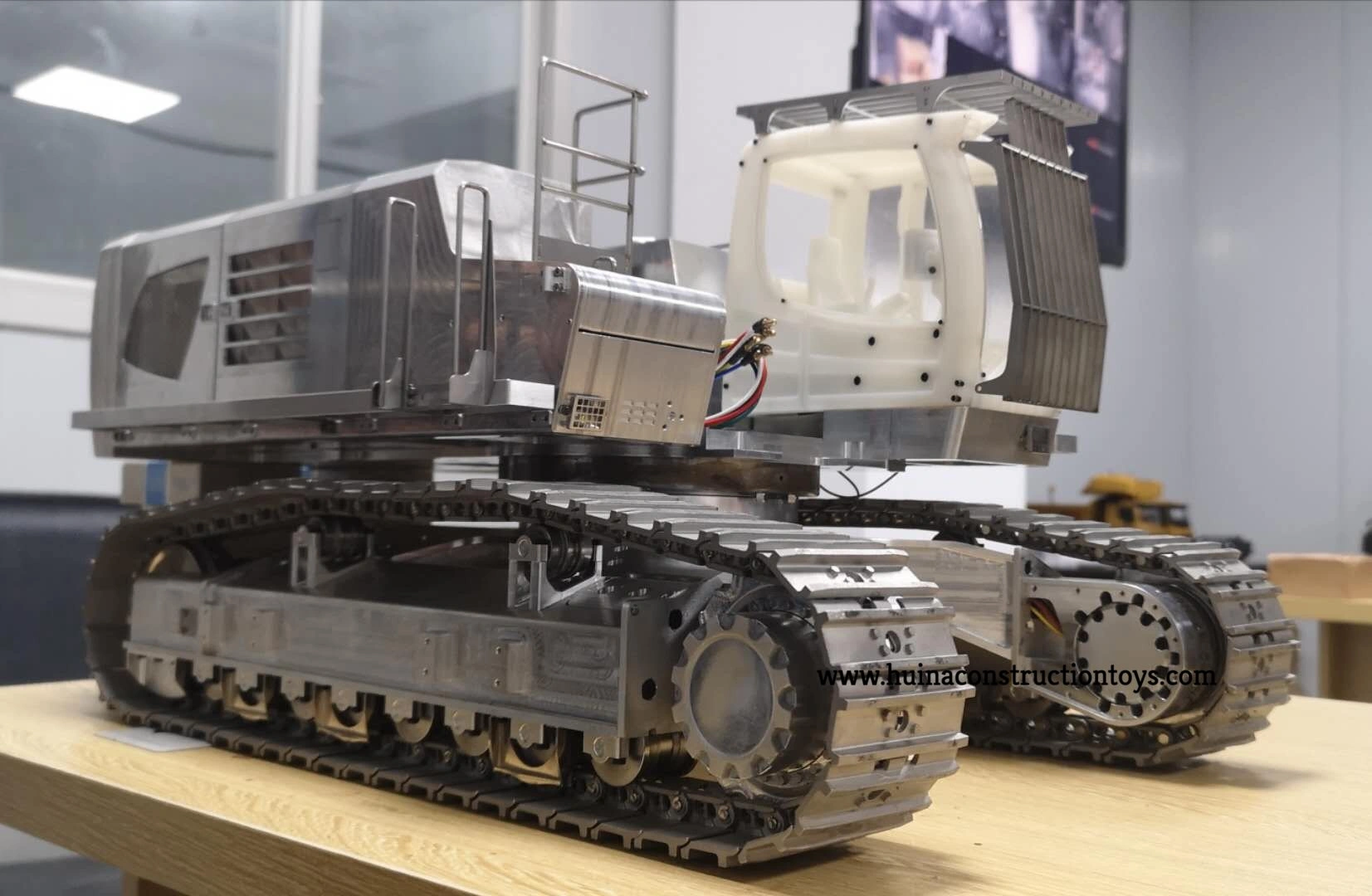

The entire frame of the K970 is made by CNC machining, the richness of detail of the finishes and details such as the grids, the metal tracks, the wheels, the handles, the pistons, the working lights, in addition to the activable sounds and adjustable, make the K970, quite true-like, a splendid masterpiece.

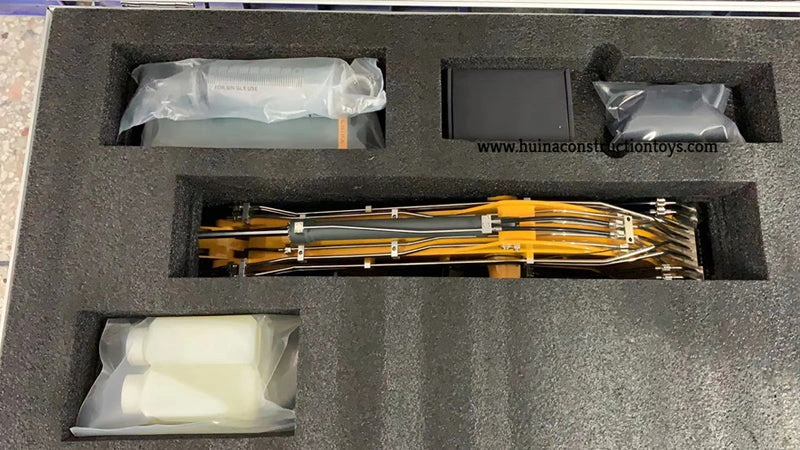

The packaging is no exception. A sturdy suitcase made specifically for the K970 is able to guarantee the necessary protection and appropriate transport.

Forward / Reverse
Right / Left controls
Main boom up / down
Front boom up / down
Bucket up / down
Bucket hitch open / closed
Lights on / off
Sounds ON / OFF / HORN with volume
Oil pump switch ON / OFF
Operation mode switch

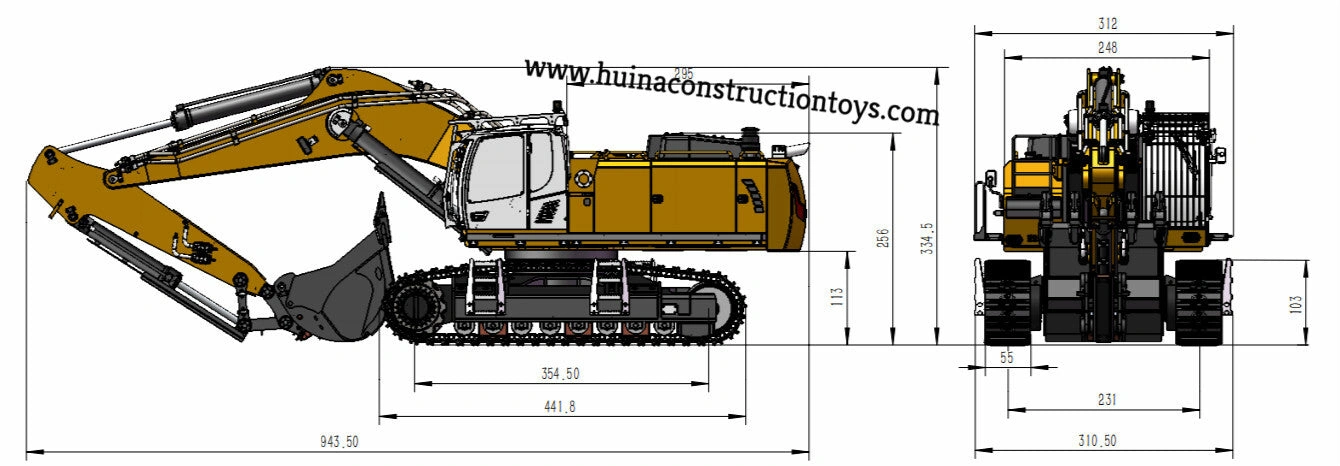

Technical specifications

Package contents:
Excavator
Remote control
7.4v 15.000 mAh LiPo battery
Battery charger
Hydraulic oil pack
Allen wrench set
Manual in ENGLISH
